Caratec Electronics CET300R Caravanning Router Set, Router and Antenna various

Product description

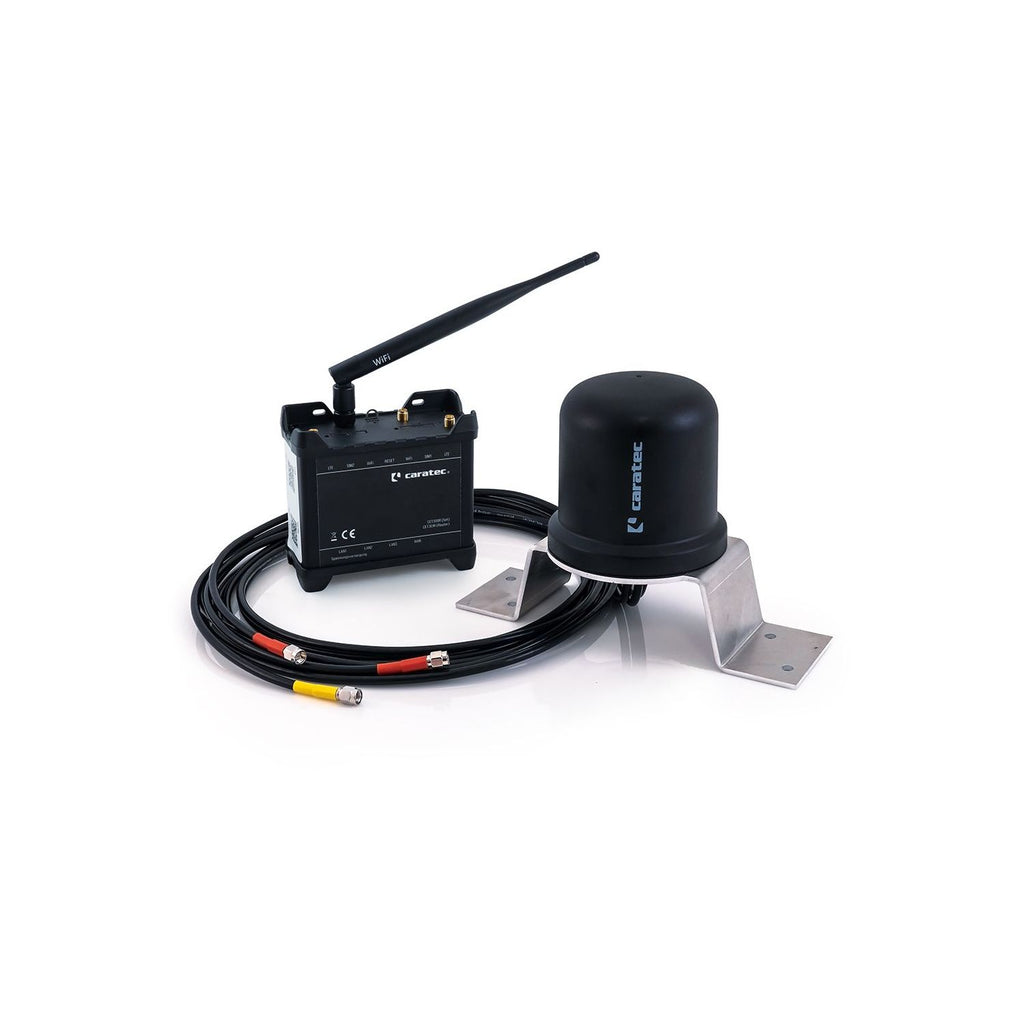

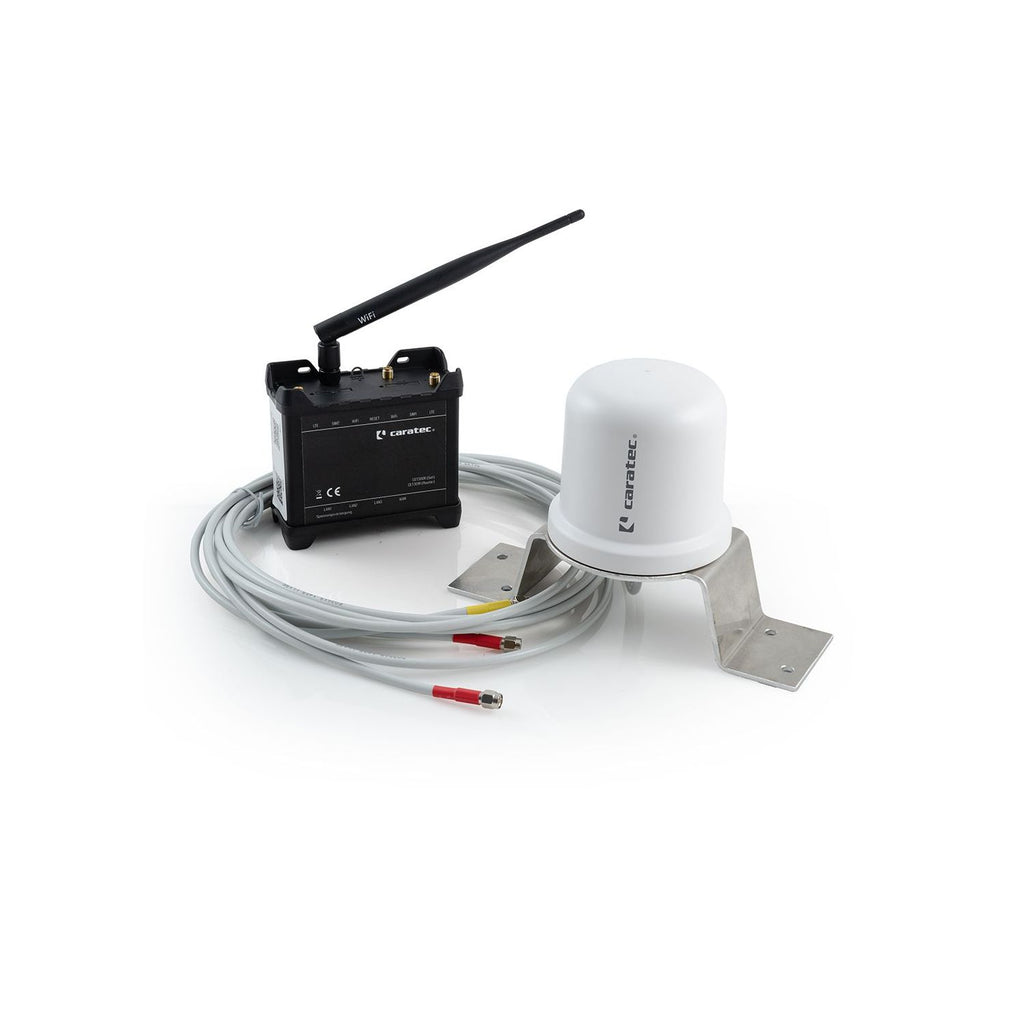

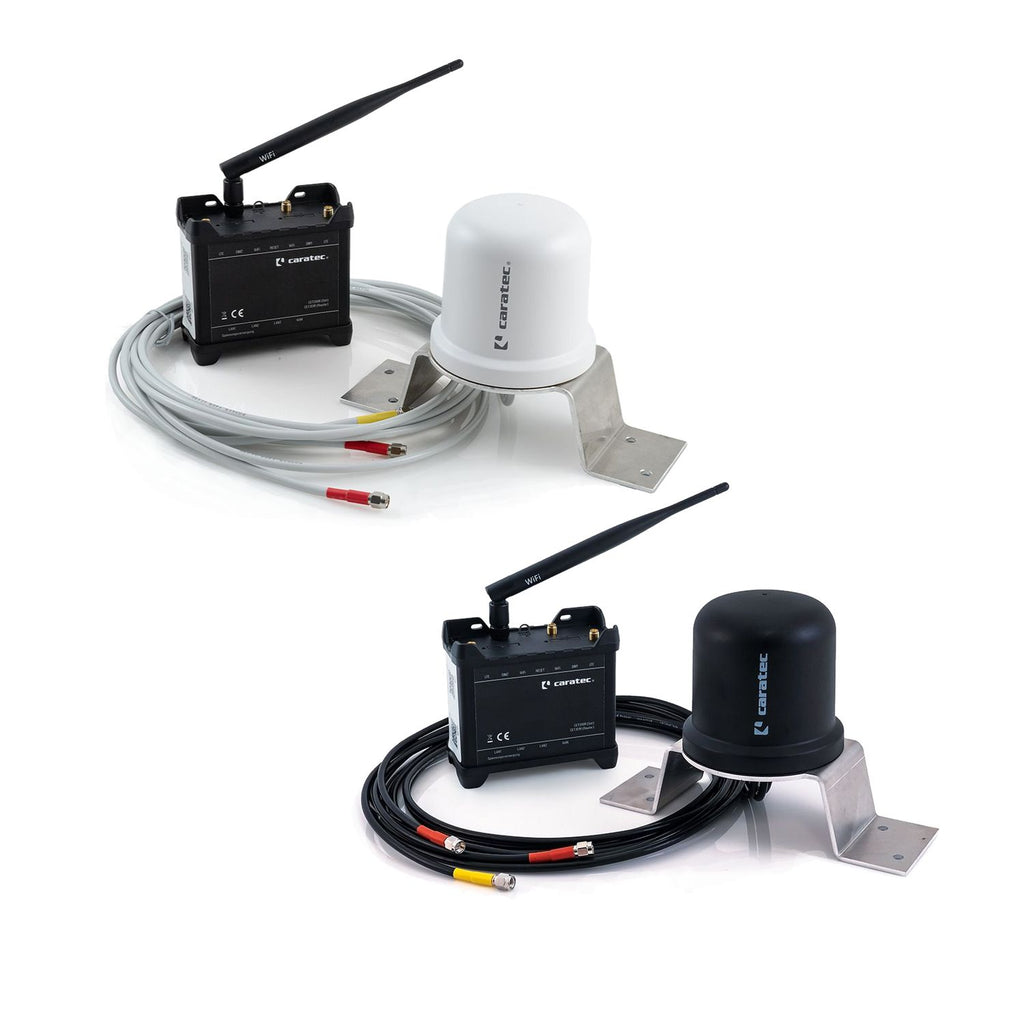

Caratec Electronics CET300R Caravanning Router Set - router and antenna for motorhome and caravan, available with a black or white antenna.

With the Caratec Electronics CET300R you get a complete set for mobile internet reception, whether Wi-Fi from the pitch or LTE.
The powerful 4G LTE Wi-Fi router, together with the external antenna, guarantees a reliable internet connection with high data throughput and high data redundancy. This provides stable internet for working and surfing or for the smart TV.
The phone module has two SIM card slots, for example for a main card and a local card from the holiday country. The MIMO configuration with two LTE antennas ensures the best reception.
The Wi-Fi module, with an external antenna, provides reception of external signals (e.g. Wi-Fi from the pitch) and an internal antenna for connecting the end devices (e.g. smartphone, tablet, PC or smart TV). One WAN port and three LAN ports are available for hard-wired connections.

Thanks to the clearly structured web application, the router is very easy to operate.

Functions of the web application:

- Selection of internet access via external Wi-Fi or LTE
- Selection of SIM1 or SIM2
- Activation of guest access
- Display of LTE and Wi-Fi signal quality

The additional Wi-Fi guest access is easy to configure. With the option to limit the data volume, it is ideal, for example, for giving friends internet access.

The compact and powerful roof antenna (IP69) with 2x LTE (MIMO) and Wi-Fi is supplied with an additional bracket for simple and universal mounting.

Technical data:

- Phone module: 4G (LTE) - Cat 4 up to 150 Mbps, 3G - up to 42 Mbps, 2G - up to 236.8 kbps
- SIM: Mini SIM - 2FF 1.8/3V
- Wi-Fi IEEE 802.11b/g/n
- Antenna connections: 2x SMA for LTE, 2x RP-SMA for Wi-Fi
- Power supply: 9 - 30 VDC
- Power consumption: < 2 W at idle, < 7 W max.
- Router dimensions: 100 x 110 x 50 mm
- Antenna dimensions: diameter 96 mm, height 90 mm (with bracket 140 mm)
- Antenna bracket dimensions: width 100 mm (60 mm at the base), height 50 mm, length 205 mm
- Length of antenna connection cables: 2 m
- Operating temperature router -40...75 °C, antenna -40...85 °C
- tested and approved to ECE R10

Scope of delivery:

- Router
- External antenna (black or white) with bracket
- Roof feed-through
- Wi-Fi internal antenna
- 12V connection cable
- On/off switch

A SIM card is additionally required and not included in the scope of delivery.
