Product description

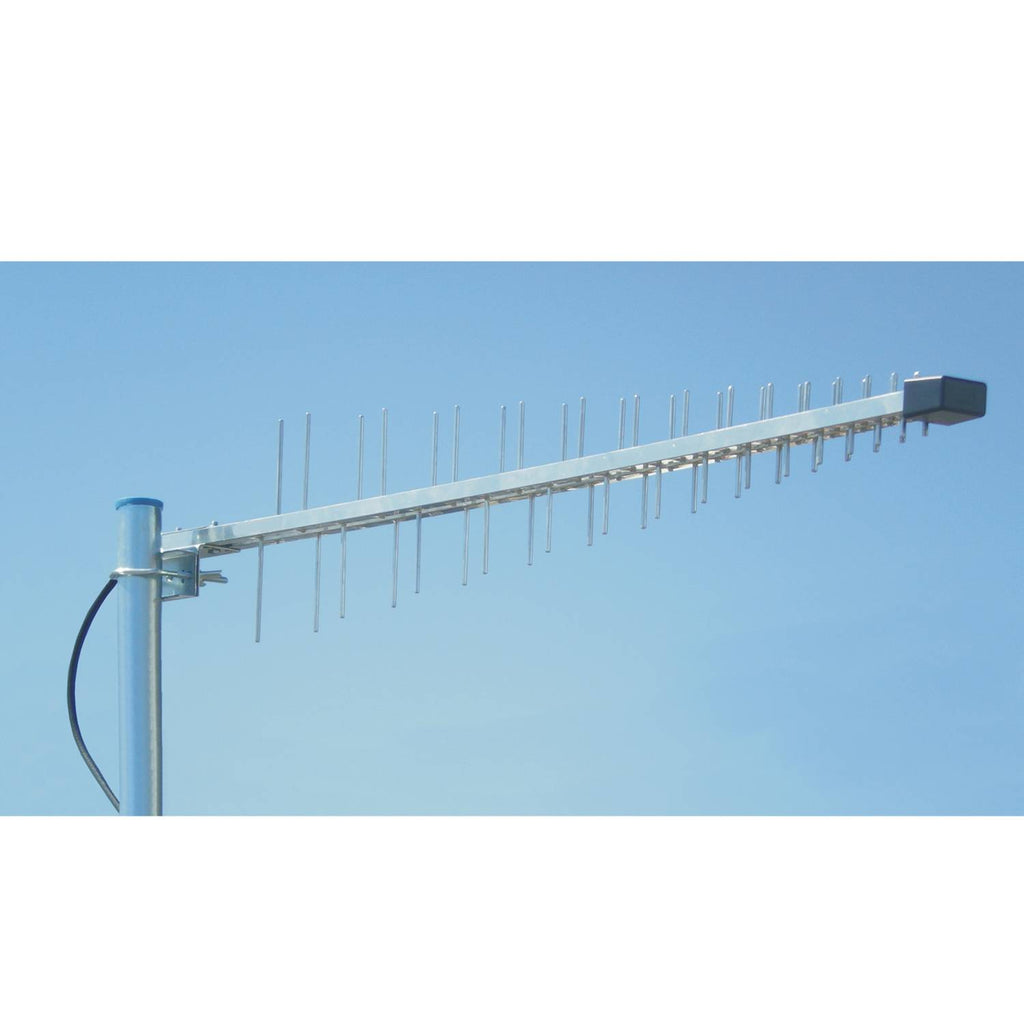

Wittenberg LAT 60 universal outdoor antenna for LTE 800, GSM 900, DCS1800, UMTS (3G), Wi-Fi, LTE and 5GThe Wittenberg LAT 60 antennas are universal outdoor antennas, allowing you to receive all radio networks such as LTE 800, GSM 900, DCS1800, UMTS (3G), Wi-Fi, LTE and 5G. The antenna can be mounted in both horizontal and vertical polarisation. With a robust design, optimal performance and a long service life, the LAT 60 antenna is thoroughly convincing.
Supported are LTE (4G) + 5G 700+800, 1800, 2.6 (4G); HSPA+, HSDPA, UMTS-3G, HSUPA, GSM, EDGE, GPRS; MIMO, Wimax 2.3 GHz; CDMA2000, Wi-Fi 802.11, 5G 3.5 GHz ...
Scope of delivery: 1 x LAT 60, 1 x 10 m connection cable
Specifications:
vertical and horizontal polarisationincl. 10 m coaxial cable (POPE H155)
to SMA connector 50 Ohm
60 elements, gain 8.5-10.5 dB(i)
front-to-back ratio 23 dB VSWR 1.6 : 1
beam width H 52° V 44°
Length: 110 cm
Note: For technical reasons, 2 antennas are always required for LTE reception. Please take a look at our DUO sets from Wittenberg for this.
