Product description

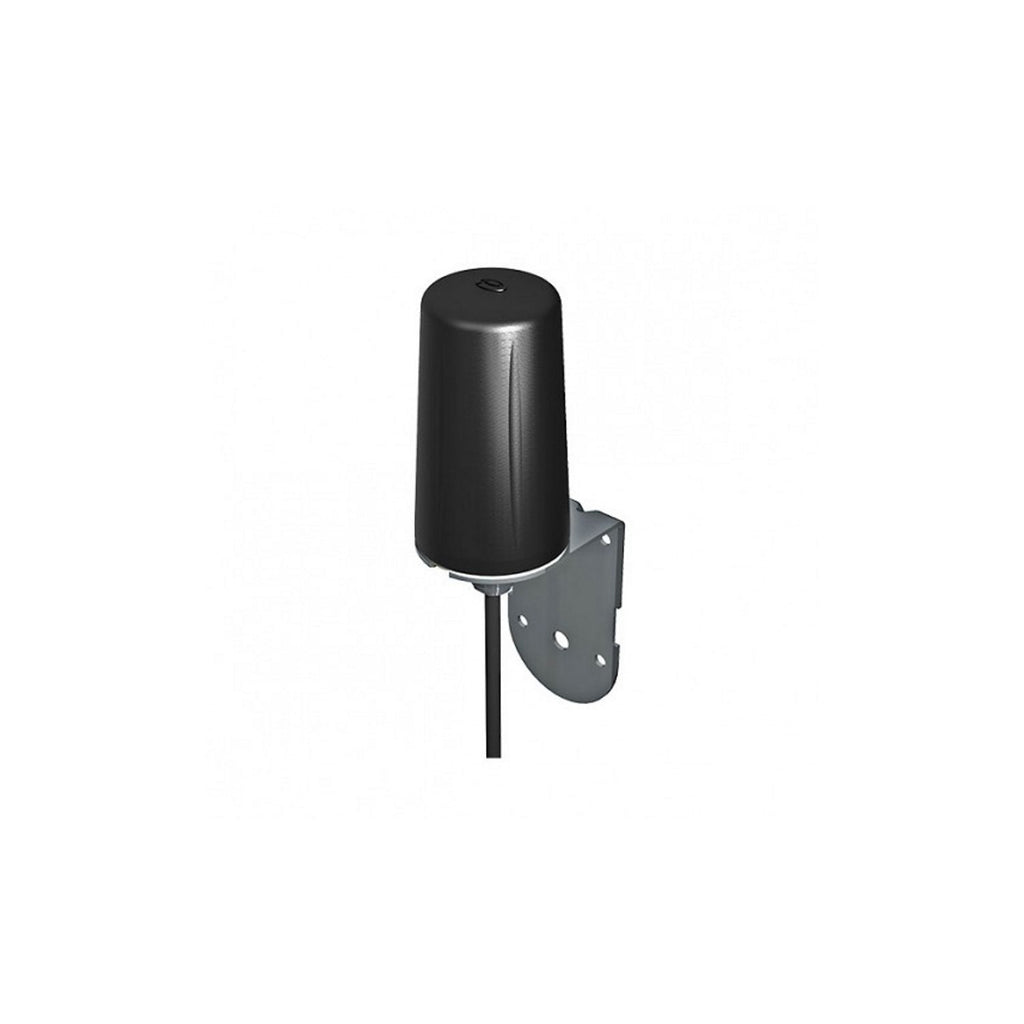

Wittenberg LTE wall/mast antenna 2G/3G/4G with 0.5 m or 5 m connection cableThe antennas differ in the length of the connection cable:
- WB 16: 5 m connection cable
- WB 17: 0.5 m connection cable
This antenna is an omni-directional broadband antenna for 4G, 3G, 2G and is suitable for indoor and outdoor installation. The design of the mounting bracket allows easy wall mounting or attachment to a mast using pipe clamps or cable ties (not included).
The omni-directional radiation pattern allows easy alignment of the antenna in an elevated position. The antenna is the ideal solution for use in industrial or domestic environments in combination with a mobile modem/router and wireless M2M (Machine to Machine) applications.
Frequency range: 2G/3G/4G 698-960 / 1710-2700 MHz
Gain: 4 dBi
Polarisation: vertical
Radiation pattern: omni-directional
Impedance: 50 Ohm
Max. input power: 60 W
Connection cable: 0.5 m (WB 17) or 5 m (WB 16)
Connector: SMA connector (m)
Height: 82 mm
Diameter: 48 mm
Material: ABS plastic
Colour: black
