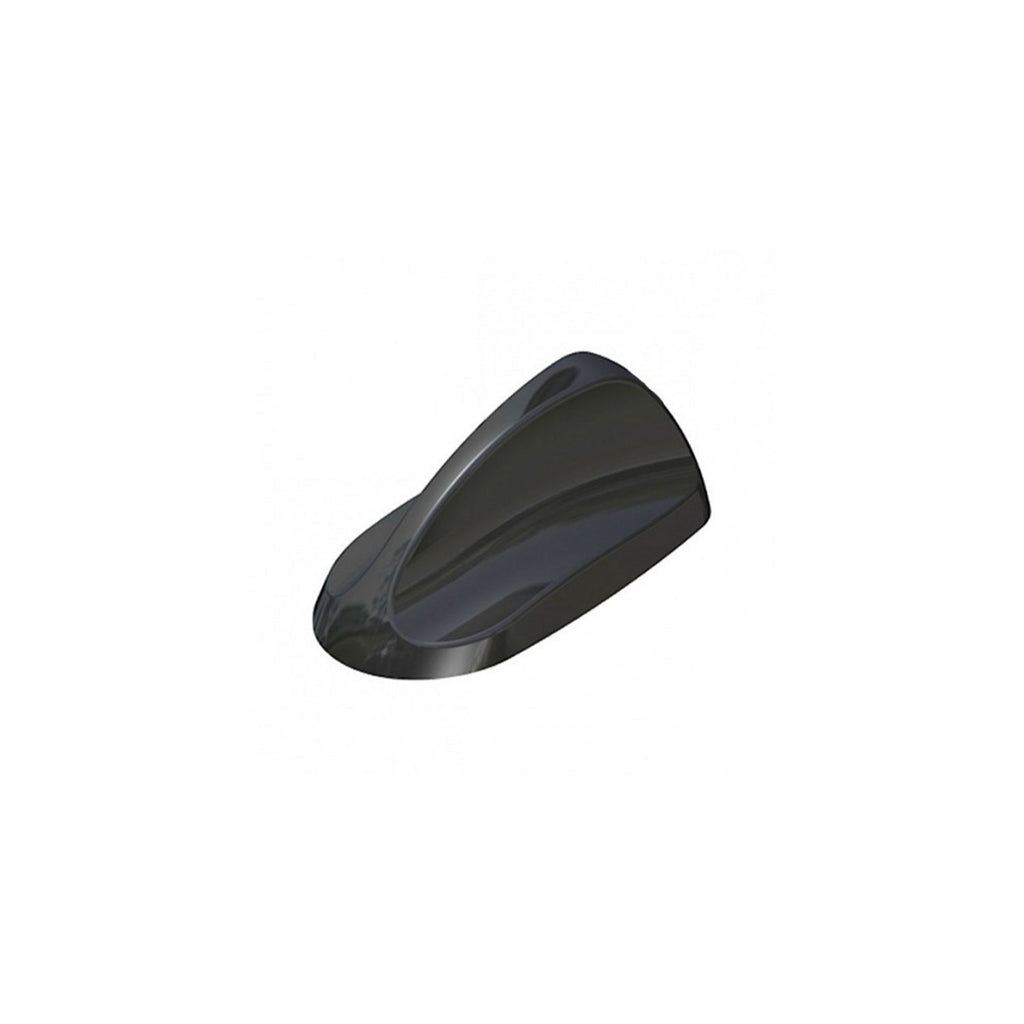

Wittenberg WB 30 Vehicle Antenna GPS (26 dBi)/ 2G/ 3G/ 4G/ WLAN, Fixed Mounting

Product description

Wittenberg WB 30 vehicle antenna with 1-2 dBi GPS (26 dBi)/ 2G/ 3G/ 4G/ WLAN

Frequency:
Element 1: 1575 MHz
Element 2: 698-960 MHz, 1710-2170 MHz, 2500-2700 MHz
Element 3: 2200-2700 MHz & 4900-6000 MHz
Element 4: Depending on the radiator installed

Gain:
Element 1: 26 dBi
Element 2: 1 dBi
Element 3: 2 dBi

Polarisation: vertical, Element 1: right-hand circular
Radiation pattern: omni-directional
Resistance: 50 OHM
Max. input power: 25 W/ main radiator 60 W
Mounting: single-hole mounting 18 mm
Dimensions: height 50 mm, length 120 mm, width 58 mm
Material: ASA black
Cable type: SR1-174-XLPE

Cable length:
Element 1: 330 mm
Element 2: 300 mm
Element 3: 270 mm
Element 4: 360 mm

Connector:
Element 1: FME socket (f)
Element 2: SMA connector (m)
Element 3: SMA socket (f)
Element 4: FME connector (m)
